CPM Pellet Mill

1100 Series

CPM’s model 1100 Pellet Mill is our smallest production-scale pellet mill. Utilizing the same design concepts we apply to our larger pellet mills, it is built to provide years of reliable, economical service.

Features
  • Single-reduction gear drive
  • Small enough for pilot plants
  • Ideal for small batches and short production runs
  • Durable enough for 24-hour operation
download brochure
request quote
Pellet Mill Series Model Internal (Inches) Die Width (Inches) Internal (mm) Die Width (mm) Area Cm2 Motor(KW) - 1500rpm
1100 1112-2 12 2 305 51 548 90
--- 1112-4 12 4 305 116 942 90
--- 1116-4 16 4 406 116 1477 90

3000 Series

The 3000 Series Pellet Mills are popular for general-line feed mills, plastics, industrial products and shrimp feeds. They have replaced the popular CPM Century line of pellet mills.

Features
  • Splash lubrication
  • Remote roll adjusting (lineator)
  • Roll speed measurement (RSM) on select models
download brochure
request quote
Pellet Mill Series Model Internal (Inches) Die Width (Inches) Internal (mm) Die Width (mm) Area Cm2 Motor(KW) - 1500rpm
3000 3016-4 16 4 406 116 1479 110
--- 3016SW 16 5 406 138 1759 110
--- 3020-6 20 6 508 156 2488 160
--- 3020SW 20 7 508 180 2871 160
--- 3022-6 22 6 572 156 2802 160
--- 3022SW 22 8 572 208 3736 160

7700 Series

The 7700 Series Pellet Mill is part of our intermediate pellet mill line with the same features as our higher-capacity and larger-horsepower pellet mills.

Features
  • Forced oil lubricated gearbox
  • Range of die sizes
  • Gear train that handles 200-300 horsepower
  • Splash lubrication
  • Remote roll adjusting (lineator)
download brochure
request quote
Pellet Mill Series Model Internal (Inches) Die Width (Inches) Internal (mm) Die Width (mm) Area Cm2 Motor(KW) - 1500rpm
7700 7722-6 22 6 572 156 2793 200
--- 7726-7 26 7 673 180 3804 250
--- 7726SW 26 9 673 238 5029 250
--- 7730-4 30 4 762 94 2250 200
--- 7730-8 30 8 762 208 5013 250
--- 7730SW 30 10 762 248 6225 250

7900 Series

The 7900 Pellet Mill is the workhorse and go-to pellet mill for many applications. Whether it is hard-running biomass, high-capacity animal feeds or anything in between, the 7900 is known for its dependability and versatility.

Features
  • 7900 industry-standard gear box
  • Largest range of die sizes of all CPM pellet mills
  • Largest range of gear sets of all CPM pellet mills
  • Largest range of horsepower for all CPM pellet mills
  • Splash lubrication
  • Remote roll adjusting (lineator)
  • Roll speed measurement (RSM) on select models
download brochure
request quote
Pellet Mill Series Model Internal (Inches) Die Width (Inches) Internal (mm) Die Width (mm) Area Cm2 Motor(KW) - 1500rpm
7900 7930-4 30 4 762 94 2250 315
--- 7930-6 30 6 762 156 3728 315
--- 7930-8 30 8 762 208 5012 315
--- 7932-5 32 5 826 115 2980 355
--- 7932-9 32 9 826 240 6218 355
--- 7932-11 32 11 826 275 7134 355
--- 7932-12 32 12 826 311 8069 355
--- 7936-12 36 12 914 311 8933 355
--- 7936-14 36 14 914 356 10352 355

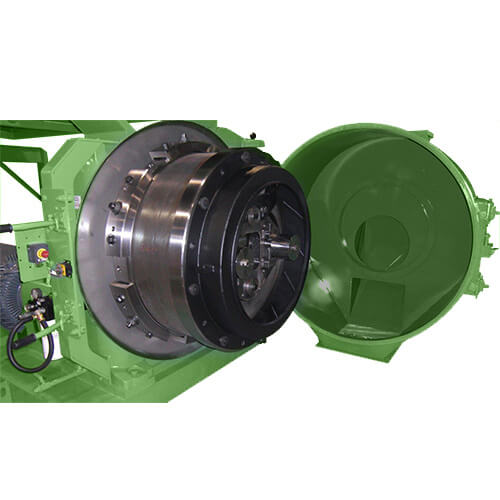

9000 Series

Our 9036 and 9042 Series Pellet Mills are built for rugged work and high capacity. For applications that require high horsepower-to-working-die surface area, the 9036 is the answer. For high-capacity applications such as oilseed meal or broiler feeds, which need increased die area, the 9042 is designed to run day-in and day-out with high output per hour.

Features
  • Splash lubrication
  • Remote roll adjusting (lineator)
  • Roll speed measurement (RSM) on select models
download brochure
request quote
Pellet Mill Series Model Internal (Inches) Die Width (Inches) Internal (mm) Die Width (mm) Area Cm2 Motor(KW) - 1500rpm
9000 9036-7 36 7 914 180 5200 450
--- 9036-9 36 9 914 240 6895 450
--- 9042-12 42 12 1057 311 10000 450

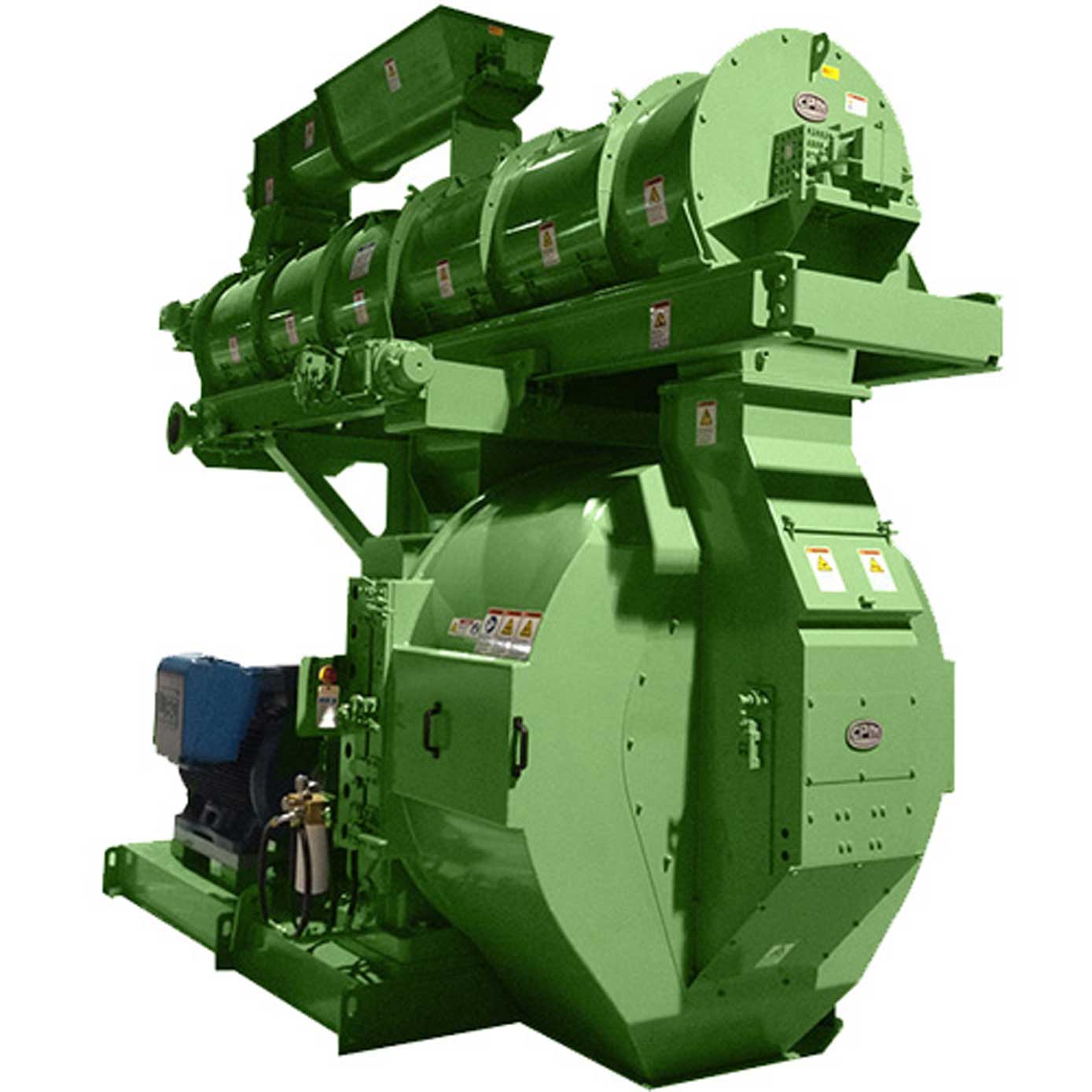

9900 Series

California Pellet Mill’s model 9950-14 is the culmination of more than 80 years of pellet mill engineering and applications expertise. At almost 2,200 square inches (14,190 cm²) of die area, it is the largest ring-die pellet mill in the world. It is designed for high-capacity applications such as integrated swine, turkey and broiler feeds.

Features
  • Single-reduction gearbox
  • Two-roll main shaft for maximum energy efficiency
  • Splash lubrication
  • Remote roll adjusting (lineator)
  • Roll speed measurement (RSM) on select models
download brochure
request quote
Pellet Mill Series Model Internal (Inches) Die Width (Inches) Internal (mm) Die Width (mm) Area Cm2 Motor(KW) - 1500rpm
9000 9050-14 50 14 1270 356 14206 600
